1. Insert the cable assembly and sunshade assembly into the rail assembly - sunroof.

2. Install the drain holder.

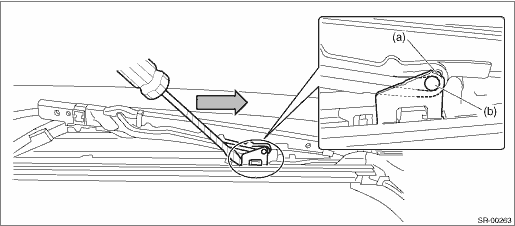

3. Using a flat tip screwdriver wrapped with protective tape, move the link - drain sunroof to the foremost position of the lid assembly - sunroof.

(a)

Lid ASSY - sunroof side

(b)

Link - drain sunroof side

4. Install the motor assembly - sunroof.

Tightening torque:

5.4 N·m (0.6 kgf-m, 4.0 ft-lb)
