DTC DETECTING CONDITION:

Immediately at fault recognition

TROUBLE SYMPTOM:

Drivability getting worse.

1. ENGINE TYPE FB

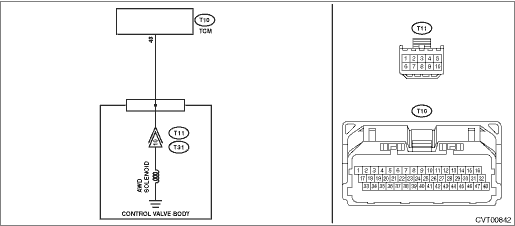

WIRING DIAGRAM:

CVT control system CVT Control System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK HARNESS. CAUTION: Start work after ATF cools down. 1) Turn the ignition switch to OFF. 2) Disconnect the TCM connector. 3) Remove the transmission valve cover. 4) Disconnect the control valve body connector. 5) Measure the resistance between TCM connector and chassis ground. Connector & terminal (T10) No. 48 — Chassis ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0970 PRESSURE CONTROL SOLENOID "C" CONTROL CIRCUIT LOW	Repair the short circuit of harness.
2.CHECK AWD SOLENOID. 1) Connect the connector for control valve body. 2) Measure the resistance between TCM connector and transmission body. Connector & terminal (T10) No. 48 — Transmission body:	Is the resistance approx. 2 — 4.5 -- (when cold)	Check for poor contact of connector, and if no fault is found, replace the TCM. Transmission Control Module (TCM)	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0970 PRESSURE CONTROL SOLENOID "C" CONTROL CIRCUIT LOW
3.CHECK HARNESS INSIDE TRANSMISSION. Check for the harness pinch, damage.	Is there any fault in the harness-	Replace the transmission harness.	Replace the control valve body. Control Valve Body

2. ENGINE TYPE EZ

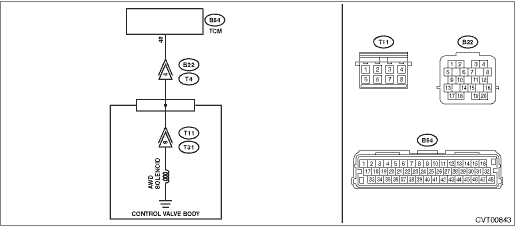

WIRING DIAGRAM:

CVT control system CVT Control System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK HARNESS. 1) Turn the ignition switch to OFF. 2) Disconnect the TCM and transmission connectors. 3) Measure the resistance between TCM connector and chassis ground. Connector & terminal (B54) No. 48 — Chassis ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0970 PRESSURE CONTROL SOLENOID "C" CONTROL CIRCUIT LOW	Repair the short circuit of harness.
2.CHECK AWD SOLENOID. Measure the resistance between transmission connector and transmission body. Connector & terminal (T4) No. 4 — Transmission body:	Is the resistance approx. 2 — 4.5 -- (when cold)	Check for poor contact of connector, and if no fault is found, replace the TCM. Transmission Control Module (TCM)	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0970 PRESSURE CONTROL SOLENOID "C" CONTROL CIRCUIT LOW
3.CHECK HARNESS INSIDE TRANSMISSION. CAUTION: Start work after ATF cools down. 1) Remove the transmission oil pan. 2) Check for the harness pinch, damage.	Is there any fault in the harness-	Replace the transmission harness.	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0970 PRESSURE CONTROL SOLENOID "C" CONTROL CIRCUIT LOW
4.CHECK HARNESS INSIDE TRANSMISSION. 1) Disconnect the control valve body connector. 2) Measure the resistance between transmission connector and transmission body. Connector & terminal (T4) No. 4 — Transmission body:	Is the resistance 1 M- or more-	Replace the control valve body. Control Valve Body	Replace the transmission harness.

3. OUTLINE OF DIAGNOSIS

• Detect the GND-output short in transfer solenoid circuit.

• Judge as NG if a ground short circuit is detected more than 10 times via the detection circuit for the transfer solenoid drive circuit.

4. EXECUTION CONDITION

Secondary Parameters	Execution condition
Target duty cycle	0%

5. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria	Threshold Value
Malfunction signal from solenoid driver IC	≥ 10 count

Time Needed for Diagnosis: Immediately
