Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Combination switch (wiper) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

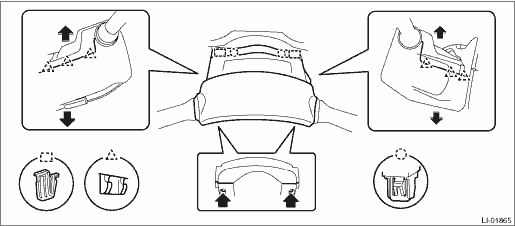

2. Remove the cover assembly - column.

(1) Remove the clips, and remove the cover - column.

(2) Remove the screws by turning the steering wheel to right and left.

(3) Release the claw, and remove the cover assembly - column UPR and the cover assembly - column LWR.

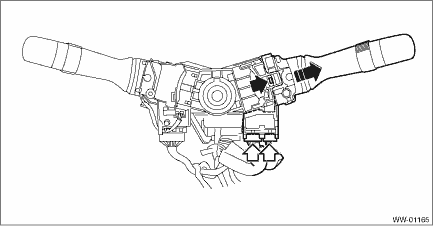

3. Remove the switch assembly - combination wiper select.

(1) Disconnect the connector.

(2) Release the claws, and pull out the switch assembly - combination wiper select.

CAUTION:

Do not press the claws with excessive force. They may be damaged.
