Subaru Legacy Service Manual: Electrical component location location

Subaru Legacy Service Manual / Power seat memory system (diagnostics) / Electrical component location location

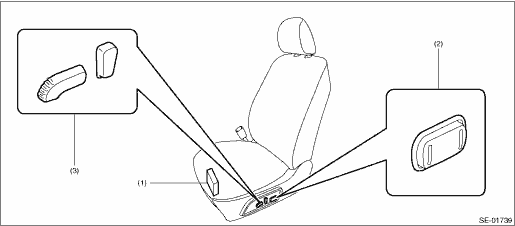

(1)

Power seat control module

(2)

Lumbar switch

(3)

Power seat switch

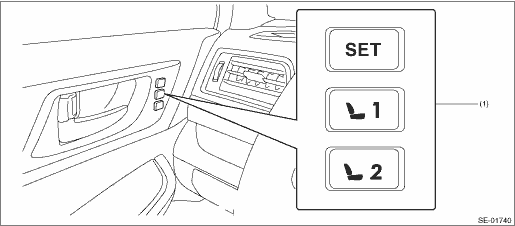

(1)

Seat memory switch

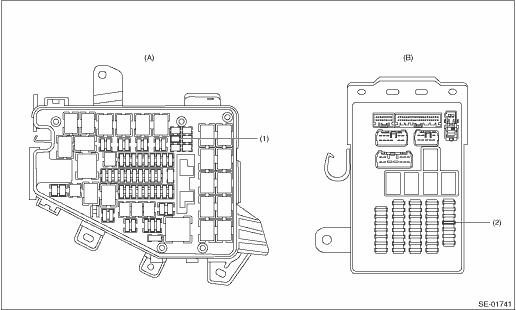

(A)

Engine compartment fuse box

(B)

Interior fuse & relay box

(1)

Fuse (30 A)

(2)

Fuse (7.5 A)

Diagnostics with phenomenon inspection
Refer to “TROUBLE SYMPTOM” for the power seat system. Power Seat System > INSPECTION ...

Inspection mode procedure
It is possible to diagnose the DTC by performing the indicated inspection mode. After correcting the DTC, perform a necessary inspection mode and make sure that the function is resumed correctly and t ...
