Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Steering responsive fog lights (diagnostics) / Electrical component location location

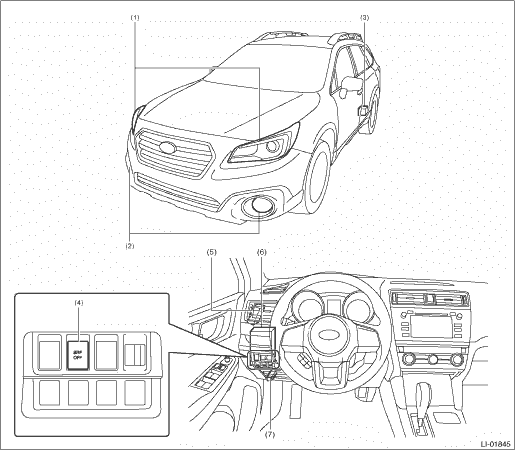

(1)

Headlight ASSY

– Headlight beam leveler actuator

(4)

SRF OFF switch

(7)

Data link connector

(2)

Fog light ASSY

(5)

SRF CM

NOTE:

Part label: LIGHTING CONTROL MODULE

(3)

Rear vehicle height sensor

(6)

Body integrated unit

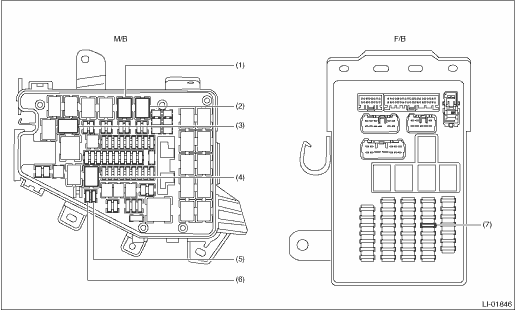

(1)	Headlight relay Lo	(4)	Front fog light relay	(7)	Fuse 7.5A (SRF CM)
(2)	Headlight relay Hi (LH)	(5)	Fuse 10A (SRF CM)
(3)	Headlight relay Hi (RH)	(6)	Fuse 10A (SRF CM)
