Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Body control system (diagnostics) / Electrical component location location

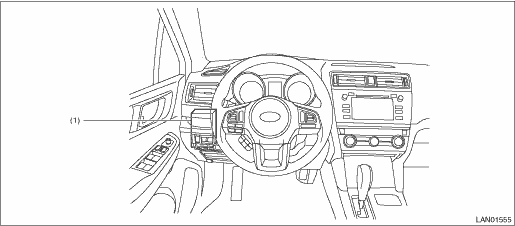

(1)	Body integrated unit

Clear memory mode operation

1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System».4. ...

General diagnostic table inspection

Read the DTC using Subaru Select Monitor. Read Diagnostic Trouble Code (DTC) Or check the following data under the current data display screen.ItemOperationSpecificationsNoteYESNODiagnostic codeDTC i ...
