Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical specification

Subaru Legacy BN/BS (2015-2019) Service Manual / Occupant detection system (diagnostics) / Control module i o signal / Electrical specification

CAUTION:

Never remove the occupant detection control module, occupant detection sensor or seat frame because they are integrated into one unit.

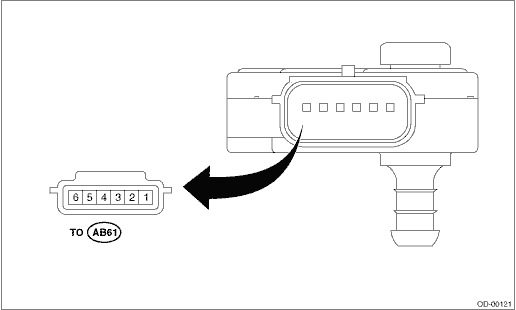

Terminal No.	Description
1	Belt tension sensor output
2	Belt tension sensor power supply
3	GND
4	Seat belt buckle switch output
5	LIN communication line (airbag CM)
6	Ignition power supply

Wiring diagram

Refer to “Occupant Detection System” in the wiring diagram. Occupant Detection System > WIRING DIAGRAM ...
