Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Control valve body / Inspection

• Check each part for damage or dust.

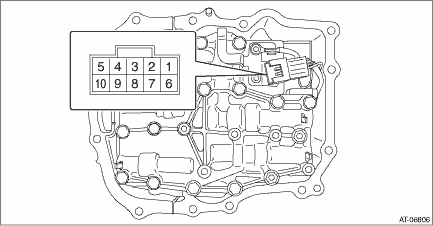

• Measure the resistance of each solenoid, sensor and ground wire.

NOTE:

Measurement should be performed at a temperature of 20°C (68°F).

• Solenoid

Solenoid	Terminal No.	Standard
Primary UP solenoid	No. 2 — control valve body	Approx. 10 — 13.5 -
Secondary solenoid	No. 3 — control valve body	Approx. 5 — 7 -
F&R clutch solenoid	No. 4 — control valve body	Approx. 4 — 6 -
Primary DOWN solenoid	No. 7 — control valve body	Approx. 10 — 13.5 -
Lock-up duty solenoid	No. 9 — control valve body	Approx. 10 — 13.5 -
AWD solenoid	No. 10 — control valve body	Approx. 2 — 4.5 -

• Oil temperature sensor

Sensor

Terminal No.

Standard

At 20°C (68°F)

Oil temperature sensor

No. 1 — No. 6

Approx. 2.5 k-

• Transmission ground

Terminal No.	Standard
No. 8 — control valve body	Less than 1 -
