Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Primary speed sensor / Inspection

1. Remove the bulkhead harness connector from TCM. Transmission Control Module (TCM) > REMOVAL

2. Set the ST between the TCM and bulkhead harness.

ST 18460AA040

CHECK BOARD

3. Set the probe of oscilloscope to the check board connector.

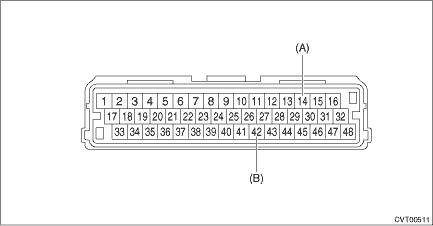

Terminals:

No. 14 (+) — No. 42 (−)

(A)	+ probe
(B)	− probe

4. Start and warm up the engine.

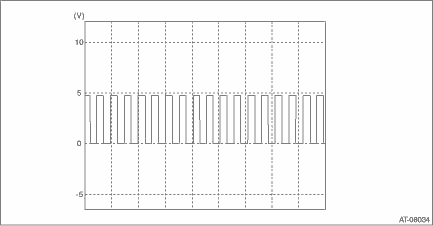

5. Check the waveform of primary speed sensor with engine idling.

NOTE:

The waveform cycle changes as the speed changes.
