Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Control systems / Mt gear select cable / Inspection

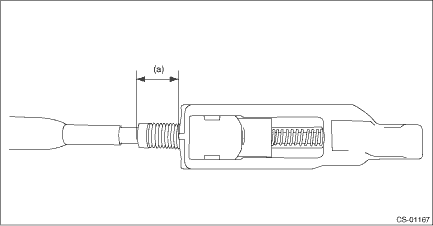

1. Check that exposed length (a) of MT gear select cable is within specification.

Exposed length (a) of MT gear select cable:

Specification: 11 mm (0.4 in)

2. If it is not within the specification, perform the adjustment. MT Gear Select Cable > ADJUSTMENT

Installation

CAUTION:• Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.• Do not bend the MT gear select cable sharply.• Do not twist the ...
