Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

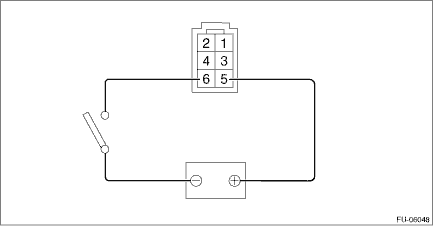

1. Check that the fuel pump has no deformation, cracks or other damages. 2. Connect the battery positive terminal to terminal No. 5 and the battery ground terminal to terminal No. 6, and inspect the fuel pump operation. WARNING: • Wipe off fuel completely. • Keep the battery as far apart from fuel pump as possible. • Do not run the fuel pump for a long time under non-load condition.
|
