1. Check the chain cover surface for scratches or dents.

2. Check for oil leakage on the chain cover mating surface and installation part of crank pulley.

If there is an oil leak from the oil seal, perform replacement with a new oil seal.

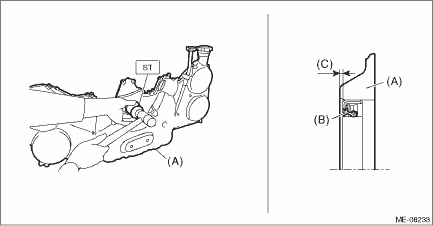

ST 499585700

OIL SEAL GUIDE

Oil seal press-fit position:

−1 mm (−0.039 in) from the chain cover end face

(A)

Chain cover

(B)

Oil seal

(C)

Oil seal press-fit position (chain cover edge −1 mm (−0.039 in) position)

Removal

NOTE:When replacing a single part, perform the work with the engine assembly installed to body.1. When working on the vehicleNOTE:When working on the vehicle, perform the following steps also.(1) Remo ...

Installation

1. Apply liquid gasket to the mating surfaces of the cylinder block, cylinder head and oil pan upper as shown in the figure.Liquid gasket:THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or eq ...
