Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Brake / Stop light switch / Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

3. Remove the panel - knee guard. Steering Column > REMOVAL

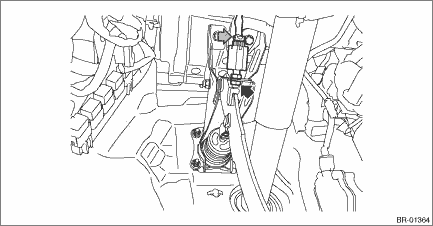

4. Remove the stop light switch.

(1) Disconnect the stop light switch connector.

(2) Remove the nut, and remove the stop light switch.

1. Loosen the lock nut, and adjust the stop light switch position until the clearance (A) between the threaded end of the stop light switch and stopper becomes 1.1 mm (0.04 in). Then, tighten the lock ...
