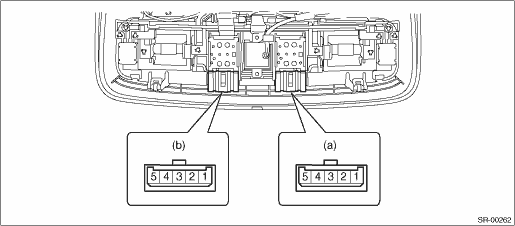

1. Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Connector	Terminal No.	Inspection conditions	Standard
(a)	1 — 3	Open	Less than 1 -
(a)	4 — 3	Close	Less than 1 -
(b)	1 — 3	Tilt down	Less than 1 -
(b)	4 — 3	Tilt up	Less than 1 -

2. Replace the sunroof switch if the inspection result is not within the standard value.
