Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Sunroof t-top convertible top (sunroof) / Sunroof switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the overhead console. (Models without EyeSight) Spot Map Light > REMOVAL

3. Remove the stereo camera cover assembly. (Models with EyeSight) Stereo Camera > REMOVAL

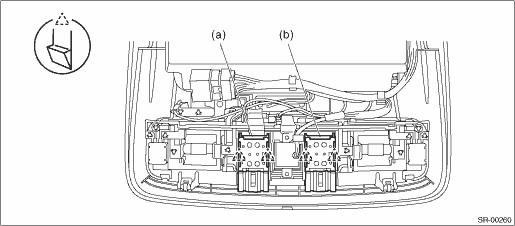

4. Release the claws and remove the sunroof switch from the light assembly - map.

(a)

Sunroof switch (tilt)

(b)

Sunroof switch (slide)

Inspection

1. Measure the resistance between connector terminals.Preparation tool:Circuit testerConnectorTerminal No.Inspection conditionsStandard(a)1 — 3OpenLess than 1 -4 — 3CloseLess than 1 -(b)1 — 3Til ...
