Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

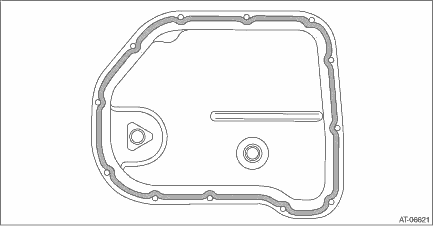

1. Clean the mating surface of oil pan and transmission case. 2. Install the O-rings. NOTE: • Use new O-rings. • Apply CVTF to the O-rings. 3. Install the oil strainer. Tightening torque: 9 N·m (0.9 kgf-m, 6.6 ft-lb) 4. Clean the magnet. 5. Attach the magnet at the specified position of the oil pan. 6. Apply liquid gasket all around the oil pan mating surface seamlessly. Liquid gasket: THREE BOND 1217B (Part No. K0877YA020) or equivalent
7. Install the oil pan by equally tightening the bolts. Tightening torque: 5 N·m (0.5 kgf-m, 3.7 ft-lb) 8. Install the under cover - front. 9. Refill CVTF and adjust the level. CVTF > REPLACEMENT |
Inspection
• Check each part for damage or dust.• Check oil strainer for clogging. ...
