Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Transfer driven gear / Installation

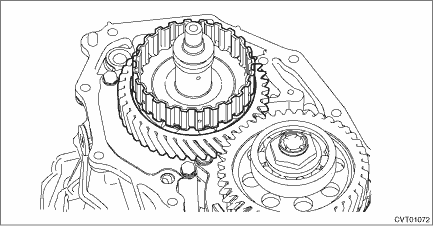

1. Install the transfer driven gear assembly.

2. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

3. Select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT

4. Install the extension case. Extension Case > INSTALLATION

5. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Adjustment

NOTE:When the transfer driven gear or bearing is replaced, select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT ...

Inspection

• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness.• Check the transfer driven gear for breakage or damage. ...
