Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Inhibitor switch / Installation

1. Install the inhibitor switch to the transmission case temporarily.

2. Connect the inhibitor harness connector to the inhibitor switch.

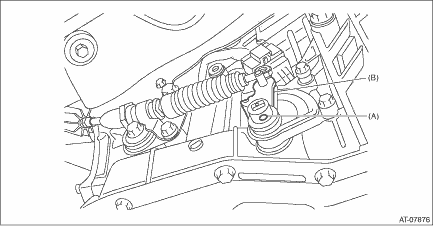

3. Install the shifter arm and fix with the spring pin.

NOTE:

Use new spring pin.

(A)	Spring pin
(B)	Shifter arm

4. Shift the shifter arm to “N” range.

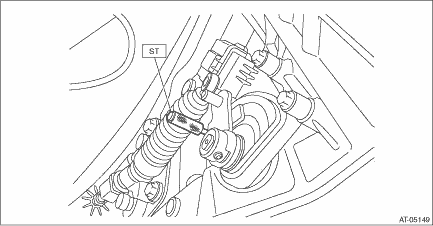

5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

ST 499267300

STOPPER PIN

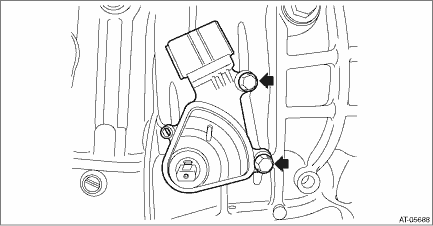

6. Tighten the two bolts holding the inhibitor switch.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

7. Install the select cable to the shifter arm.

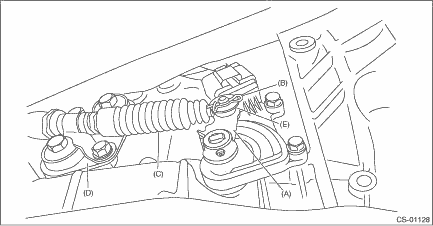

8. Install the washer and snap pin to the shifter arm.

(A)	Shifter arm
(B)	Snap pin
(C)	Select cable
(D)	Plate ASSY
(E)	Washer

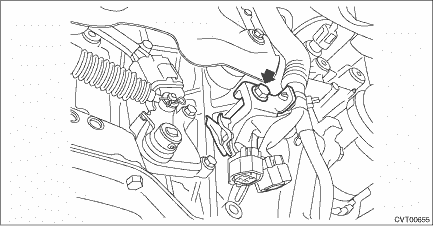

9. Install the harness stay.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

10. Install the front exhaust pipe. Front Exhaust Pipe > INSTALLATION

11. Lower the vehicle.

12. Connect the ground terminal to battery sensor. NOTE

13. Check the inhibitor switch. Inhibitor Switch > INSPECTION
