Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

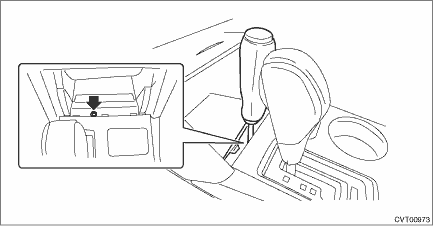

1. Disconnect the ground terminal from battery sensor. NOTE 2. Release the shift lock using a screwdriver to shift the select lever to the “N” range.

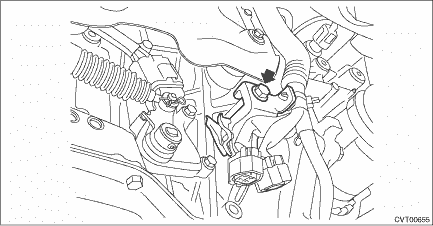

3. Remove the front exhaust pipe. Front Exhaust Pipe > REMOVAL 4. Remove the harness stay from transmission.

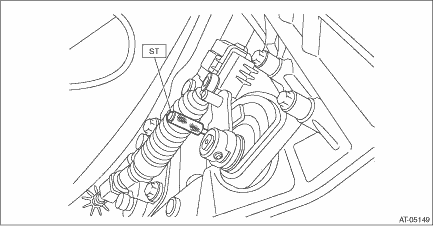

5. Loosen the two bolts holding the inhibitor switch. 6. Insert the ST vertically into the holes of the shifter arm and switch body.
7. Tighten the two bolts holding the inhibitor switch. Tightening torque: 5 N·m (0.5 kgf-m, 3.7 ft-lb) 8. Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be “faulty”, replace it. |
Removal
1. Disconnect the ground terminal from battery sensor. NOTE2. While pressing the shift lock release button, shift the select lever to the “N” range.3. Lift up the vehicle.4. Remove the fr ...
Installation
1. Install the inhibitor switch to the transmission case temporarily.2. Connect the inhibitor harness connector to the inhibitor switch.3. Install the shifter arm and fix with the spring pin.NOTE:Use ...
Other materials:
Electrical component location location
(1)Inhibitor switch (CVT model)(5)Neutral position switch (MT model)(8)Data link connector(2)TCM (engine type: EZ)(6)Cruise indicator light and cruise set indicator light(9)Clutch switch (MT model)(3)ECM(7)Cruise control command switch(10)Stop light and brake switch(4)TCM (engine type: FB)(on the tr ...
