1. Disconnect the ground terminal from battery sensor. NOTE

2. While pressing the shift lock release button, shift the select lever to the “N” range.

3. Lift up the vehicle.

4. Remove the front exhaust pipe. Front Exhaust Pipe > REMOVAL

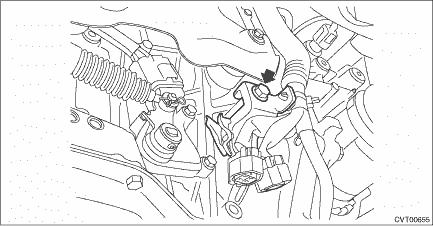

5. Remove the harness stay from transmission.

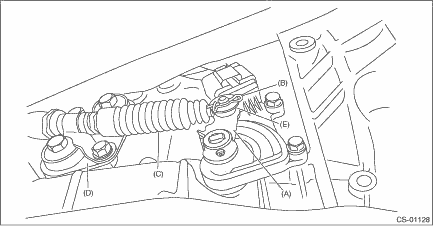

6. Remove the snap pin and washer from the shifter arm.

(A)	Shifter arm
(B)	Snap pin
(C)	Select cable
(D)	Plate ASSY
(E)	Washer

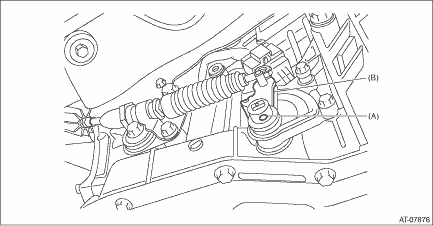

7. Using the ST, remove the spring pin and shifter arm.

(A)	Spring pin
(B)	Shifter arm

8. Remove the inhibitor harness connector from inhibitor switch.

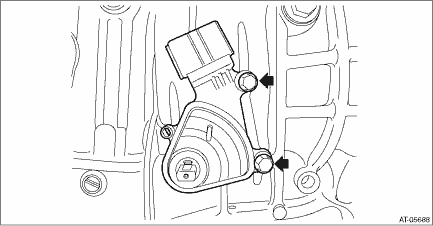

9. Remove the two inhibitor switch securing bolts.

10. Remove the inhibitor switch from the transmission case.

Adjustment

1. Disconnect the ground terminal from battery sensor. NOTE2. Release the shift lock using a screwdriver to shift the select lever to the “N” range.3. Remove the front exhaust pipe. Fron ...
