Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Intermediate case / Installation

1. Clean the mating surface of intermediate case and transmission case.

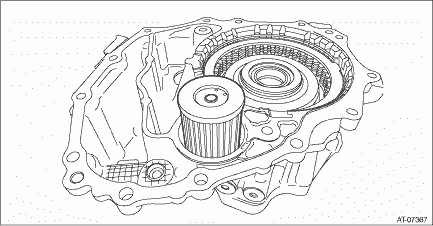

2. Face the O-ring side of the CVTF filter to the intermediate case side, and install the CVTF filter.

NOTE:

Apply CVTF to the O-rings.

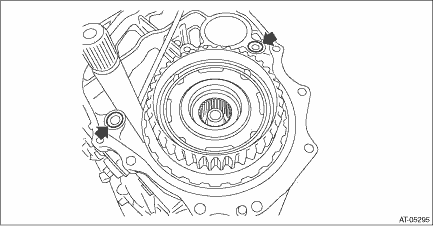

3. Install the O-ring to the transmission case.

NOTE:

• Use new O-rings.

• Apply CVTF to the O-rings.

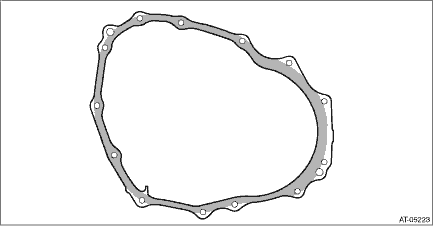

4. Apply liquid gasket to intermediate case seamlessly.

Liquid gasket:

THREE BOND 1215B or equivalent

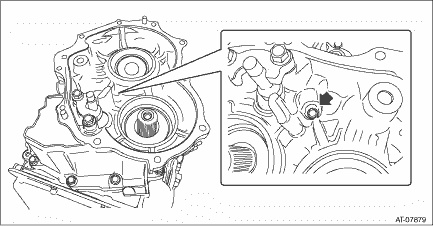

5. Install the intermediate case and the transmission hanger to the transmission case.

NOTE:

Make sure to install the arrowed bolt.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

6. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION

7. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

8. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

9. Install the parking pawl. Parking Pawl > INSTALLATION

10. Install the extension case. Extension Case > INSTALLATION

11. Install the transmission to vehicle. Automatic Transmission Assembly > INSTALLATION

Assembly

1. Install the reverse brake. Reverse Brake Assembly > ASSEMBLY2. install all plugs to intermediate case.Tightening torque:25 N·m (2.5 kgf-m, 18.4 ft-lb)NOTE:Use new O-rings.3. Install the par ...

Inspection

• Check the intermediate case for fissures, cracks or damage.• Check for leakage of CVTF from the connections between intermediate case and transmission case, and between intermediate case ...
