Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Intermediate case / Assembly

1. Install the reverse brake. Reverse Brake Assembly > ASSEMBLY

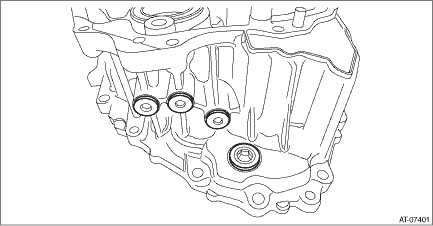

2. install all plugs to intermediate case.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

NOTE:

Use new O-rings.

3. Install the parking support.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

4. Install the CVTF filler plug.

NOTE:

Replace the gasket of CVTF filler plug with a new part after installing the transmission assembly to vehicle and adjusting CVTF fluid.
