1. Remove the transmission assembly from vehicle body. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

3. Remove the parking pawl. Parking Pawl > REMOVAL

4. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

5. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

6. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

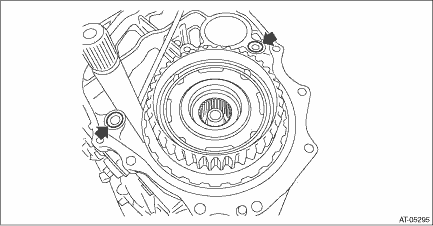

7. Remove the intermediate case.

NOTE:

• The total number of intermediate case mounting bolts is 14.

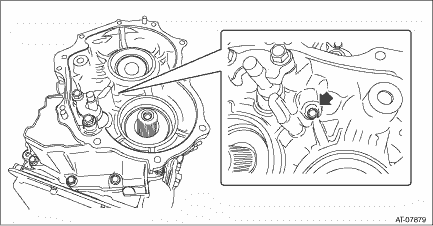

• Inside the transmission is a single bolt (arrowed).

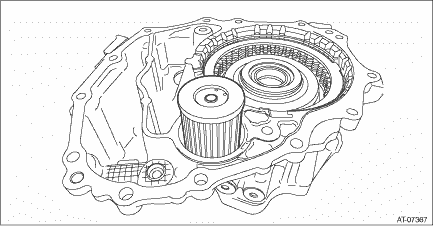

8. Remove the CVTF filter.

9. Remove the O-ring from the transmission case.

Assembly

1. Install the reverse brake. Reverse Brake Assembly > ASSEMBLY2. install all plugs to intermediate case.Tightening torque:25 N·m (2.5 kgf-m, 18.4 ft-lb)NOTE:Use new O-rings.3. Install the par ...
