Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Rear drive shaft / Installation

1. Select the thrust needle bearing. Rear Drive Shaft > ADJUSTMENT

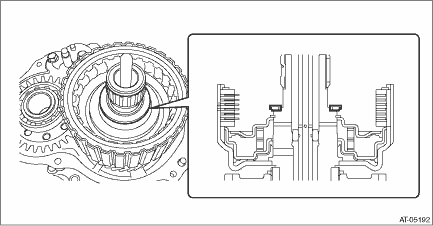

2. Install the selected thrust needle bearing to transfer clutch assembly.

NOTE:

Install the thrust needle bearing in the correct direction.

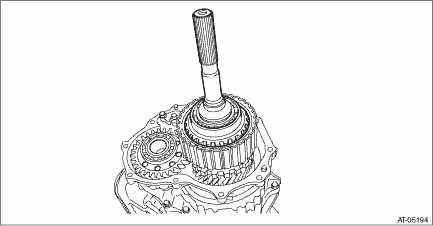

3. Install the rear drive shaft.

4. Install the extension case. Extension Case > INSTALLATION

5. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION

Adjustment

NOTE:When replacing the rear drive shaft or bearing, select the thrust needle bearing.1. Using the ST, measure the distance “A” from ST end face to rear drive shaft thrust needle bearing c ...

Inspection

• Check each part for crack, damage or dust.• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness. ...
