Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Install the rear cushion rubber on the transmission.

Tightening torque:

40 N·m (4.1 kgf-m, 29.5 ft-lb)

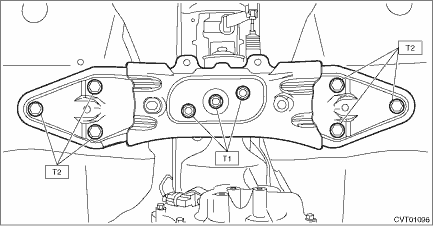

2. Install the transmission rear crossmember.

Tightening torque:

T1: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

T2: 75 N·m (7.6 kgf-m, 55.3 ft-lb)

3. Remove the transmission jack.

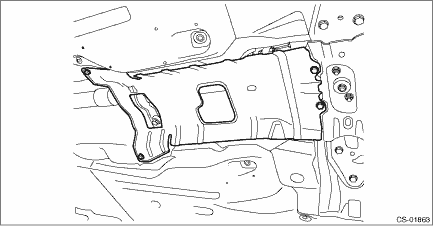

4. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

5. Install the front exhaust pipe. Front Exhaust Pipe > INSTALLATION

6. Connect the ground terminal to battery sensor. NOTE
