1. WATER PUMP PULLEY

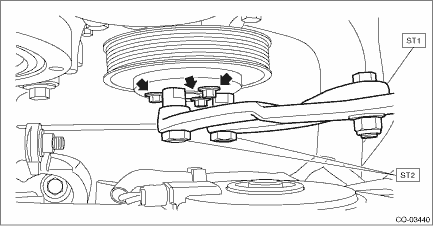

1. Using the ST, install the water pump pulley.

ST1 18355AA000

PULLEY WRENCH

ST2 18334AA030

PULLEY WRENCH PIN SET

Tightening torque:

14 N·m (1.4 kgf-m, 10.3 ft-lb)

2. Install the V-belts. V-belt > INSTALLATION

2. WATER PUMP

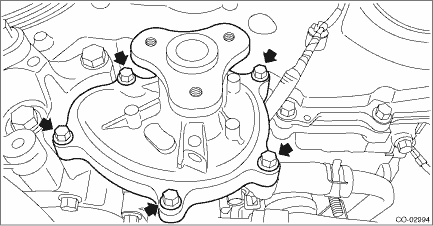

1. Install the water pump to oil pan upper.

NOTE:

Use a new gasket.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

2. Install the under cover. Front Under Cover > INSTALLATION

3. Lower the vehicle.

4. Install the water pump pulley. Water Pump > INSTALLATION

5. Fill engine coolant. Engine Coolant > REPLACEMENT

Inspection

1. Check that the water pump pulley does not have deformation, cracks and any other damage.2. Check the water pump bearing for smooth rotation.3. Make sure the impeller is not abnormally deformed or d ...
