Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Temporarily tighten the housing assembly - rear axle to the upper arm assembly.

2. Install the rear drive shaft assembly. Rear Drive Shaft > INSTALLATION

CAUTION:

Do not hammer the drive shaft assembly when installing.

(1) Insert the drive shaft assembly into the hub spline, and pull it into the specified position.

(2) Tighten the new nut - axle temporarily.

3. Tighten the rear shock absorber assembly, rear stabilizer link assembly and other links to the specified torque.

Tightening torque:

Rear suspension: General Description > COMPONENT

Rear shock absorber: General Description > COMPONENT

4. Install the rear disc rotor.

5. Install the disc brake assembly.

Tightening torque:

66 N·m (6.7 kgf-m, 48.7 ft-lb)

6. Install the brake hose bracket and rear ABS wheel speed sensor.

Tightening torque:

Brake hose bracket: 33 N·m (3.4 kgf-m, 24.3 ft-lb)

Rear ABS wheel speed sensor: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

7. Install the sensor assembly - headlight beam leveler. (Model with auto headlight beam leveler)

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

8. While depressing the brake pedal, tighten new nuts - axle to the specified torque.

CAUTION:

Do not load the rear axle before tightening the nut - axle. Doing so may damage the hub unit COMPL.

Tightening torque:

240 N·m (24.5 kgf-m, 177 ft-lb)

9. After tightening the nut - axle, lock it securely.

10. Install the rear wheels, and perform the following inspections.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

(1) Check the wheels for smooth rotation.

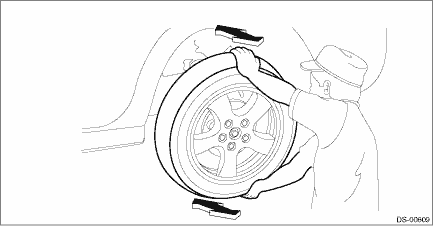

(2) Check that there is no play by moving the upper and lower portions of rear tire in an axial direction with the brake pedal released.

Play exists > Check the hub unit COMPL - rear axle. Rear Hub Unit Bearing > INSPECTION

11. Inspect the wheel alignment and adjust if necessary.

Inspection: Wheel Alignment > INSPECTION

Adjustment: Wheel Alignment > ADJUSTMENT

CAUTION:

When the wheel alignment has been adjusted, perform the following adjustment.

Lane keep assist learning value clear (model with EyeSight): Clear Active Lane Keep System Learning Value > OPERATION

“VSC(VDC) Centering Mode”: VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT

12. Perform reinitialization of the auto headlight beam leveler system. (Model with auto headlight beam leveler) Auto Headlight Beam Leveler System > PROCEDURE
