Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

CAUTION:

Do not reuse the removed door sash tape. Replace it with a new tape.

When applying tape, use a spatula, etc. to apply evenly, pushing it against the sash to make sure that no air bubbles are formed.

If air bubbles are formed, reapply the tape.

If the tape is wrinkled, etc. during application, replace the tape.

Turning points and ends of the tape will be a cause for peeling if the pressure is insufficient during application, so make sure to push down on the tape firmly when applying.

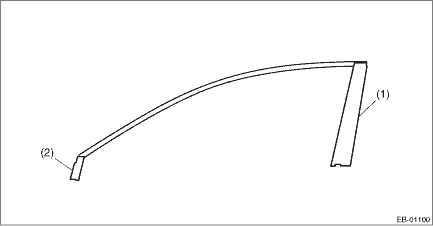

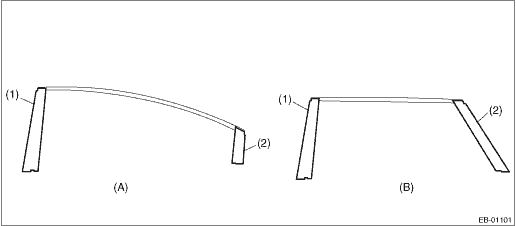

There are locations where the tape ends will overlap each other. When applying the tape, be careful of the order of their application.

Front

Rear

(A)

Sedan model

(B)

OUTBACK model

Do not reuse the weather strip outer. Always replace with a new part.

1. FRONT DOOR

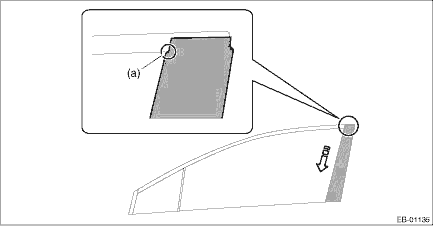

1. Apply the front door sash tape - rear from the top of the vehicle towards the bottom as shown in the figure (a).

2. Fold the corners at the door upper end area in the order of (1) — (3).

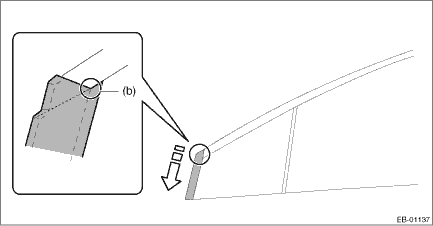

3. Apply the front door sash tape - front from the top of the vehicle towards the bottom as shown in the figure (b).

4. Fold the corners at the door upper end area in the order of (1) — (4).

5. Install the molding - door sash front.

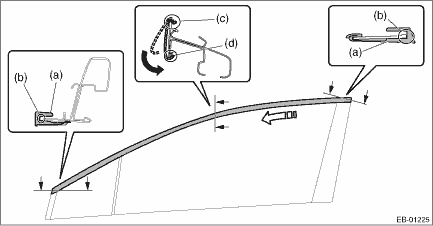

(1) Align the molding - door sash front (a) with the end of the sash (b), then temporarily install by hooking it on the upper edge (c) of the sash.

(2) Fit the lower edge of the sash (d) from the rear side of vehicle toward the front side of the vehicle.

CAUTION:

Do not apply a concentrated load to any location of the molding - door sash, because such a load may bend the parts.

When distortion occurred to the molding - door sash, always replace it with a new part.

6. Install the weather strip outer - front door.

7. Install the running channel - front door.

8. Install the glass assembly - front door.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

9. Install the weather strip - front door.

10. Install the sealing cover - front door.

11. Install the outer mirror assembly.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

12. Install the trim panel - front door. Door Trim > INSTALLATION

13. Connect the ground terminal to the battery sensor. NOTE

2. REAR DOOR

Sedan model

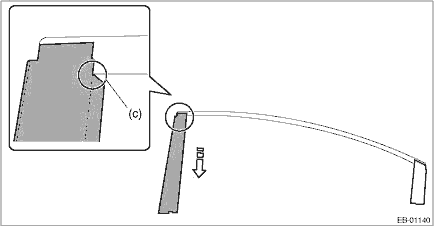

1. Apply the rear door sash tape - front from the top of the vehicle towards the bottom as shown in the figure (c).

2. Fold the corners at the door upper end area in the order of (1) — (2).

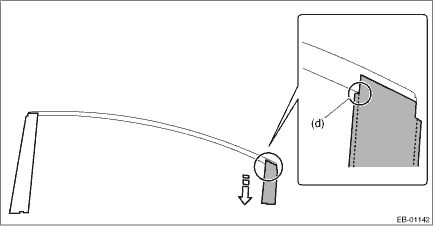

3. Apply the rear door sash tape - rear from the top of the vehicle towards the bottom as shown in the figure (d).

4. Fold the corners at the door upper end area in the order of (1) — (3).

5. Install the molding - door sash rear.

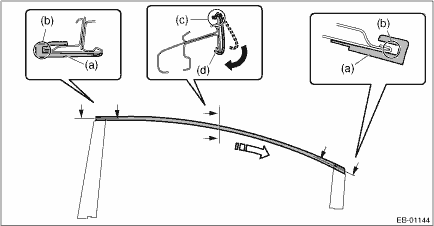

(1) Align the molding - door sash rear (a) with the end of the sash (b), then temporarily install by hooking it on the upper edge (c) of the sash.

(2) Fit the lower edge of the sash (d) from the front side of vehicle toward the rear side of the vehicle.

CAUTION:

Do not apply a concentrated load to any location of the molding - door sash, because such a load may bend the parts.

When distortion occurred to the molding - door sash, always replace it with a new part.

6. Install the weather strip outer - rear door.

7. Install the running channel - rear door.

8. Install the glass assembly - rear door.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

9. Install the weather strip - rear door.

10. Install the sealing cover - rear door.

11. Install the trim panel - rear door. Door Trim > INSTALLATION

12. Connect the ground terminal to battery sensor. NOTE

3. REAR DOOR

OUTBACK model

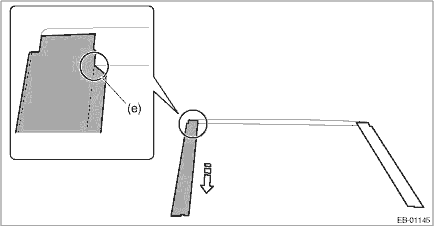

1. Apply the rear door sash tape - front from the top of the vehicle towards the bottom as shown in the figure (e).

2. Fold the corners at the door upper end area in the order of (1) — (2).

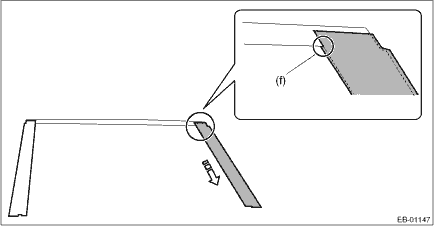

3. Apply the rear door sash tape - rear from the top of the vehicle towards the bottom as shown in the figure (f).

4. Fold the corners at the door upper end area in the order of (1) — (3).

5. Install the molding - door sash rear.

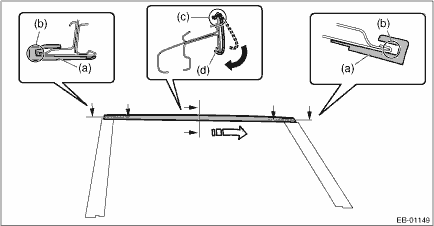

(1) Align the molding - door sash rear (a) with the end of the sash (b), then temporarily install by hooking it on the upper edge (c) of the sash.

(2) Fit the lower edge of the sash (d) from the front side of vehicle toward the rear side of the vehicle.

CAUTION:

Do not apply a concentrated load to any location of the molding - door sash, because such a load may bend the parts.

When distortion occurred to the molding - door sash, always replace it with a new part.

6. Install the weather strip outer - rear door.

7. Install the running channel - rear door.

8. Install the glass assembly - rear door.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

9. Install the weather strip - rear door.

10. Install the sealing cover - rear door.

11. Install the trim panel - rear door. Door Trim > INSTALLATION

12. Connect the ground terminal to battery sensor. NOTE
