CAUTION:

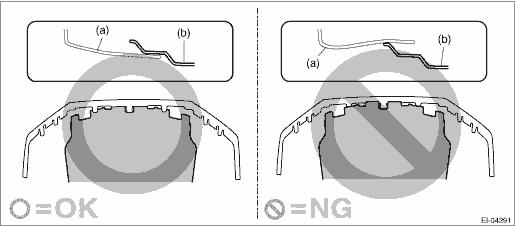

• Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a).

• Before installing the bumper face, match the claws on the bracket - front bumper with the engaging position of flange section on the bumper face side. If the engaging position is not correct, the flange section may be broken or the clearance between fender panel and bumper face may not be uniform.

1. Install the fog light assembly - front.

2. Install the bracket - front bumper side.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

3. Install the bracket - front bumper corner.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

4. Install the bracket - front center LWR.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

5. Install the under cover - front. Front Under Cover > REMOVAL

6. Install the bumper beam COMPL - front.

Tightening torque:

33 N·m (3.4 kgf-m, 24.3 ft-lb)

7. Install the active grille shutter. (H4 model)

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

8. Install the energy absorber foam - front.

9. Install the bumper face - front.

NOTE:

Secure the flange section of the bumper face - front to the bracket - front bumper side.

10. Connect the ground terminal to battery sensor. NOTE

11. Adjust the fog light beam. Front Fog Light Assembly > ADJUSTMENT
