Subaru Legacy BN/BS (2015-2019) Service Manual: Installation
CAUTION: If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

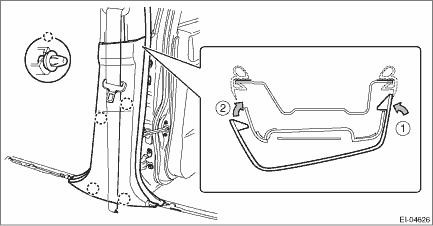

1. Install the cover - catcher. 2. Install the trim panel - center pillar LWR. NOTE: Assemble the trim panel - center pillar LWR to the trim panel - center pillar UPR securely.
3. Install the cover side sill - rear. 4. Install the rear seat cushion assembly. 5. Install the front cover - side sill. 6. Install the cover side sill - front. |
