Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

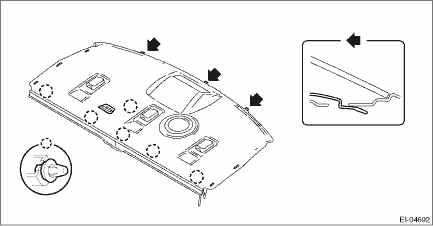

CAUTION: • Make sure that the claw behind the trim panel assembly - rear shelf is securely attached to the hole of vehicle body.
• If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.
1. Install the trim panel assembly - rear shelf. 2. Install the high-mounted stop light. CAUTION: Make sure that the claw behind the light assembly - high-mounted is securely attached to the trim panel assembly - rear shelf. 3. Install the lower anchor of seat belt - rear shoulder CTR. Tightening torque: 30 N·m (3.1 kgf-m, 22.1 ft-lb) 4. Install the trim panel - rear pillar UPR. 5. Install the side pad assembly - backrest. Tightening torque: 53 N·m (5.4 kgf-m, 39.1 ft-lb) 6. Install the rear seat cushion assembly. 7. Connect the ground terminal to battery sensor. NOTE |
