1. Install the throttle body to the intake manifold.

NOTE:

Use a new gasket.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

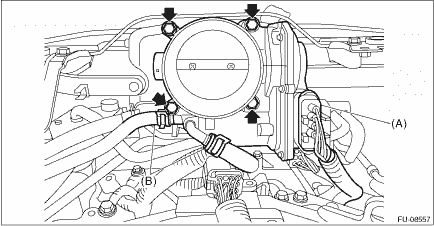

2. Connect the connector (A) to the throttle position sensor, and connect the preheater hose (B) to the throttle body.

3. Install the air intake boot. Air Intake Boot > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

5. Fill engine coolant. Engine Coolant > REPLACEMENT

6. Install the collector cover.
