Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h6do) / Oil level switch / Installation

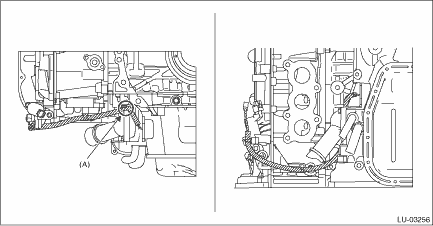

1. Route the oil level switch harness as shown in the figure.

(A)	Route the oil level switch harness through inside of the oil pan upper bolt.

2. Attach the oil level switch to the oil pan upper.

NOTE:

• Use new O-rings.

• Apply a coat of engine oil to the O-rings.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

3. Connect the connector of the oil level switch to the engine harness, and install the clips securing the harness to the front camshaft cap (LH) and the cylinder head (LH).

4. Install the under cover. Front Under Cover > INSTALLATION

5. Lower the vehicle.

6. Connect the ground terminal to battery sensor. NOTE

7. Refill the engine oil. Engine Oil > REPLACEMENT
