Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h6do) / Oil level switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the under cover. Front Under Cover > REMOVAL

3. Drain the engine oil. Engine Oil > REPLACEMENT

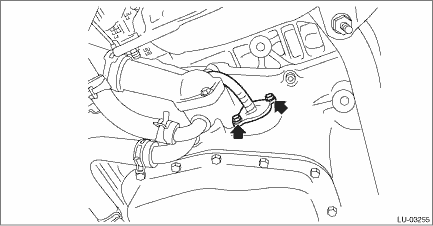

4. Disconnect the connector of the oil level switch from the engine harness, and remove the clip securing the harness to the front camshaft cap (LH) and the cylinder head (LH).

5. Remove the oil level switch from the oil pan upper.

Inspection

1. INSPECTION WHEN LOW ENGINE OIL WARNING LIGHT ILLUMINATES ON LCDSTEPCHECKYESNO1.CHECK ENGINE OIL LEVEL.Is engine oil level normal- Oil Level Switch > INSPECTIONReplace engine oil or refill, and chec ...

Installation

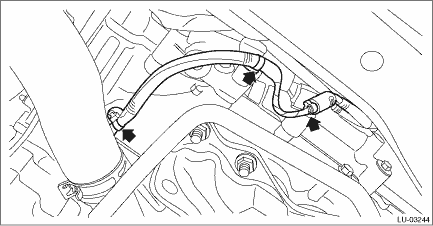

1. Route the oil level switch harness as shown in the figure.(A)Route the oil level switch harness through inside of the oil pan upper bolt.2. Attach the oil level switch to the oil pan upper.NOTE:&bu ...
