Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

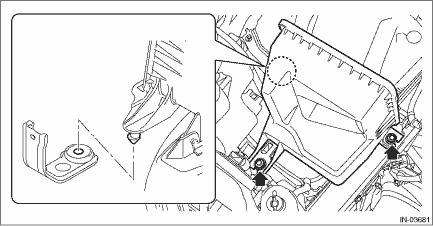

1. Install the air cleaner case bracket to the vehicle. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb) 2. Install the air cleaner case (front) to the vehicle body and air cleaner case bracket. NOTE: Make sure that the protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket. Tightening torque: 6 N·m (0.6 kgf-m, 4.4 ft-lb)
3. Set the air cleaner case (rear) and air cleaner element to the air cleaner case (front). Air Cleaner Element > INSTALLATION 4. Install the air intake duct. Air Intake Duct > INSTALLATION 5. Connect the ground terminal to battery sensor. NOTE |
Inspection
1. Check that the air cleaner case has no deformation, cracks or other damages.2. Check that the air intake boot has no cracks, damage or loose part. ...
