Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h4do) / Generator / Installation

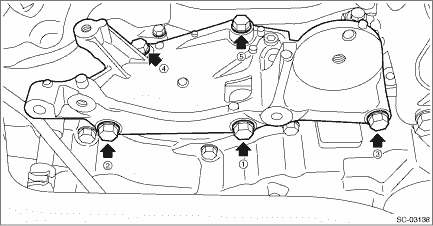

1. Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.

Tightening torque:

36 N·m (3.7 kgf-m, 26.6 ft-lb)

2. Install the V-belt tensioner. V-belt > INSTALLATION

3. Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

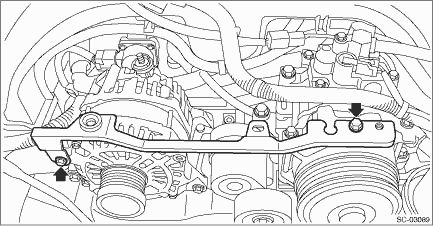

4. Install the V-belt cover bracket.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

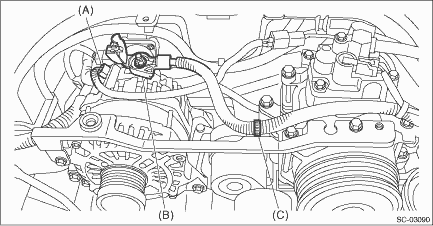

5. Connect the connector (A) and terminal (B) to the generator, and attach the clip (C).

Tightening torque:

15 N·m (1.5 kgf-m, 11.1 ft-lb)

6. Install the V-belts. V-belt > INSTALLATION

7. Connect the ground terminal to battery sensor. NOTE
