Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

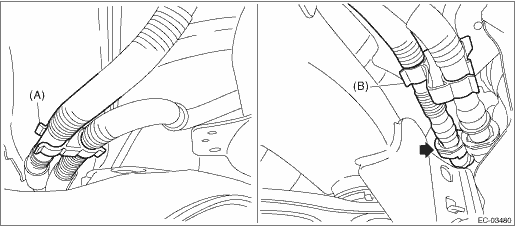

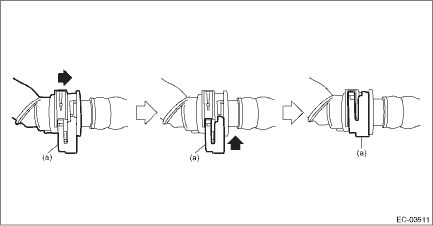

1. Connect the drain tube, and install the drain tube to the tube clamp (A) and tube clamp (B). CAUTION: • Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe. • Make sure that the quick connector is securely connected. NOTE: Connect the quick connector as shown in the figure. • Color of the slider is either red or green

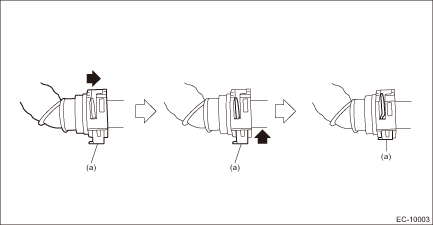

• Color of the slider is white

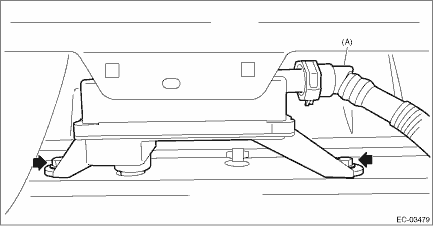

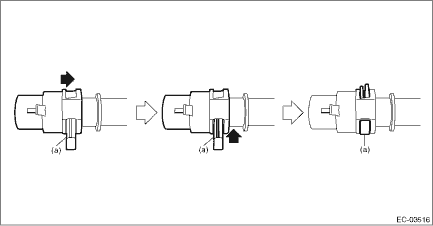

2. Install the drain filter. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb) 3. Connect the drain tube (A) to the drain filter. CAUTION: • Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe. • Make sure that the quick connector is securely connected. NOTE: Connect the quick connector as shown in the figure.
4. Install the rear differential. (Sedan model) Rear Differential (VA-type) > INSTALLATION Rear Differential (T-type) > INSTALLATION |
Inspection
1. Check that the drain filter and drain tube have no deformation, cracks or other damages.2. Check that no foreign substances are clogged in the drain filter. ...
