Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

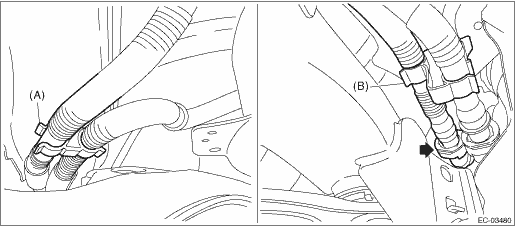

1. Connect the drain tube, and install the drain tube to the tube clamp (A) and tube clamp (B).

CAUTION:

Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.

Make sure that the quick connector is securely connected.

NOTE:

Connect the quick connector as shown in the figure.

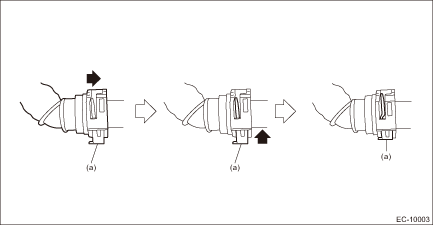

Color of the slider is either red or green

(a)

Slider

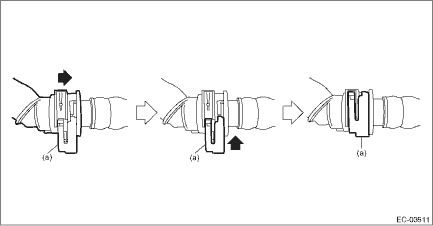

Color of the slider is white

(a)

Slider

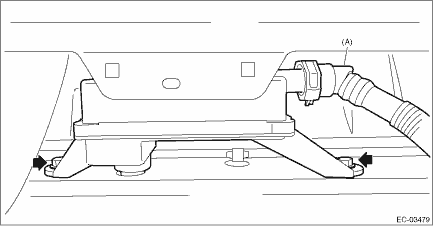

2. Install the drain filter.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

3. Connect the drain tube (A) to the drain filter.

CAUTION:

Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.

Make sure that the quick connector is securely connected.

NOTE:

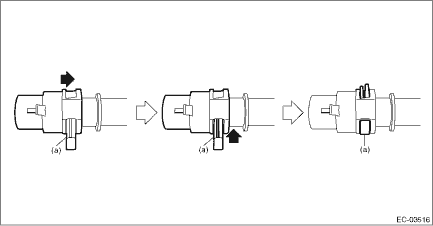

Connect the quick connector as shown in the figure.

(a)

Slider

4. Install the rear differential. (Sedan model) Rear Differential (VA-type) > INSTALLATION

Inspection
1. Check that the drain filter and drain tube have no deformation, cracks or other damages.2. Check that no foreign substances are clogged in the drain filter. ...
