Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Emission control (aux. Emission control devices)(h6do) / Purge control solenoid valve / Installation

1. Install the purge control solenoid valve, and connect the connector and vacuum hose to the purge control solenoid valve.

NOTE:

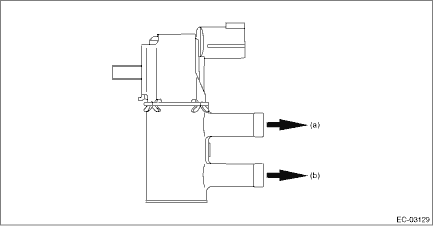

Connect the vacuum hose as shown in the figure.

(a)

To intake manifold

(b)

To fuel pipe

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

2. Install the air intake boot. Air Intake Boot > INSTALLATION

3. Connect the ground terminal to battery sensor. NOTE

4. Install the collector cover.
