Subaru Legacy BN/BS (2015-2019) Service Manual: Location

Subaru Legacy BN/BS (2015-2019) Service Manual / Eyesight / Relay and fuse / Location

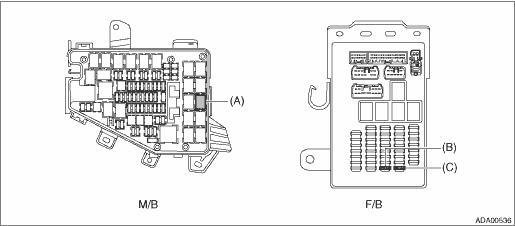

Main fuse box (M/B)	Brake light relay	(A)
Fuse & relay box (F/B)	Fuse 7.5 A (stop light and brake switch)	(B)
Fuse & relay box (F/B)	Fuse 7.5 A (stereo camera)	(C)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit
