Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Relay and fuse / Location

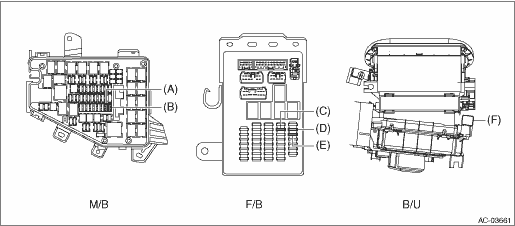

Main fuse box (M/B)

Fuse 15 A (blower motor relay)

(A)

Fuse 15 A (blower motor relay)

(B)

Fuse & relay box (F/B)

Fuse 15 A (blower motor relay, intake door actuator, A/C control module)

(C)

Fuse 7.5 A (A/C control module, A/C control panel)

(D)

Fuse 7.5 A (A/C control panel)

(E)

Blower motor unit (B/U)

Blower motor relay

(F)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit

Relay and fuse
...

Inspection
1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.NOTE:If the fuse is blown again, check the system wiring harness.2. CHECK RELAY1. Measure the resista ...
