Subaru Legacy BN/BS (2015-2019) Service Manual: Location

Subaru Legacy BN/BS (2015-2019) Service Manual / Power rear gate system / Relay and fuse / Location

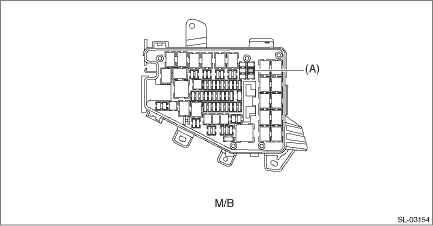

Main fuse box (M/B)

Fuse 30 A (power rear gate control module)

(A)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit
