Subaru Legacy BN/BS (2015-2019) Service Manual: Replacement

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Ignition key lock / Replacement

CAUTION:

• Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION

• Do not allow harness and connectors to interfere or get tangled up with other parts.

• If the steering wheel and steering angle sensor (steering roll connector) are removed, perform “VSC(VDC) Centering Mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the column assembly - steering. Steering Column > REMOVAL

3. Remove the ignition key lock.

(1) Secure the column assembly - steering in a vise.

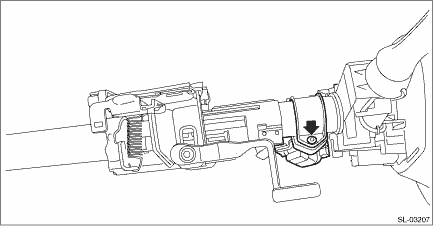

(2) Use the reverse tap and drill to remove the set bolt and remove the ignition key lock.

4. Install the ignition key lock.

(1) Secure the ignition key lock to the column assembly - steering.

(2) Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).

5. Install the column assembly - steering. Steering Column > INSTALLATION

6. Connect the ground terminal to battery sensor. NOTE

Ignition key lock

...

Disassembly

NOTE:Refer to “Key Lock Cylinders” for disassembly of the ignition key lock. Key Lock Cylinders > REMOVAL ...
