Outback

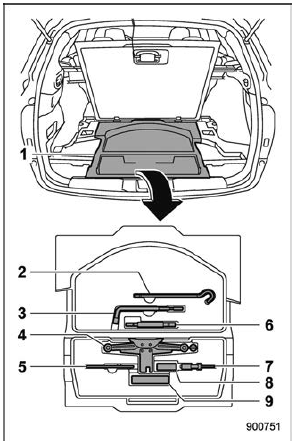

1) Under-floor storage compartment (Refer to "Under-floor storage compartment" .)
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Torque wrench
6) Towing hook (eye bolt)
7) Screwdriver
8) Tire fixing band
9) Tire bag

The maintenance tools are stored in the under-floor storage compartment.

For the method to use the jack, refer to "Flat tires" .
