Subaru Legacy BN/BS (2015-2019) Service Manual: Rear wiring harness lh location

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiring system / Rear wiring harness lh location

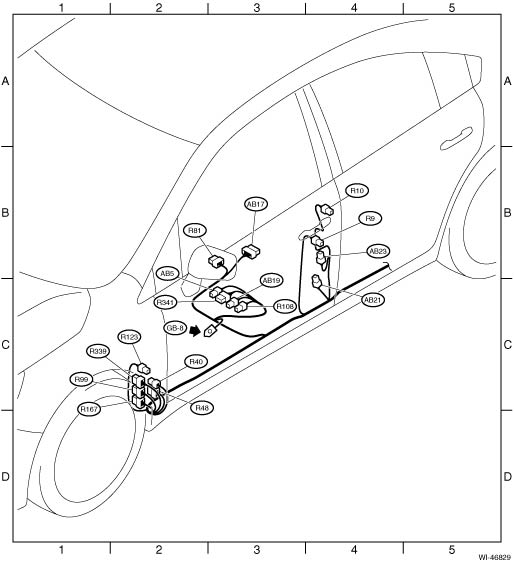

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
AB5	2	Y	C-3		Seat cushion airbag module LH
AB17	22	Y	B-3		Airbag CM
AB19	2	Y	C-3		Side airbag module LH
AB21	2	B	C-4		Pretensioner LH
AB23	4	Y	B-4		Side airbag sensor LH
R9	4		B-4		Front door switch LH
R10	8		B-4	D22	Rear door cord LH
R40	6		C-2	i128	Instrument panel wiring harness
R48	18	L	C-2	i135	Instrument panel wiring harness
R81	20		B-3	R82	Rear wiring harness RH
R99	18	Gr	C-2	i54	Instrument panel wiring harness
R108	2	B	C-3		Seat belt switch LH
R123	2	Y	C-2	AB62	Airbag wiring harness
R167	12	B	C-2	i102	Instrument panel wiring harness
R339	12		C-2	i2	Instrument panel wiring harness
R341	14		C-3	R205	Power seat LH
:White or natural color

Rear wiring harness and trunk lid cord location

ConnectorConnecting toNo.PoleColorAreaNo.DescriptionAB312BB-1 Curtain airbag module LHAB324YC-1 Curtain airbag sensor LHAB332BA-3 Curtain airbag module RHAB344YB-3 Curtain airbag sensor RHAB563BrB-2 B ...

Rear wiring harness rh location

ConnectorConnecting toNo.PoleColorAreaNo.DescriptionAB1822YC-4 Airbag CMAB222YC-3 Seat cushion airbag module RHAB242YC-3 Side airbag module RHAB262BB-3 Pretensioner RHAB284YB-3 Side airbag sensor RHAB ...
