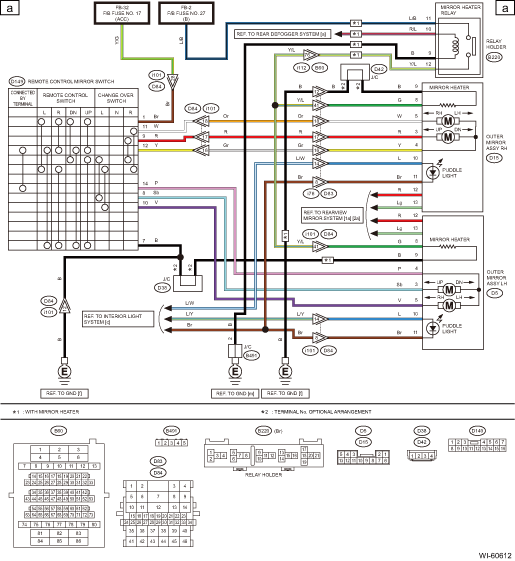

Subaru Legacy BN/BS (2015-2019) Service Manual: Remote control mirror system wiring diagram

Rearview mirror system wiring diagram

1. WITHOUT AUTOMATIC ANTI-GLARE2. WITH AUTOMATIC ANTI-GLARE ...
