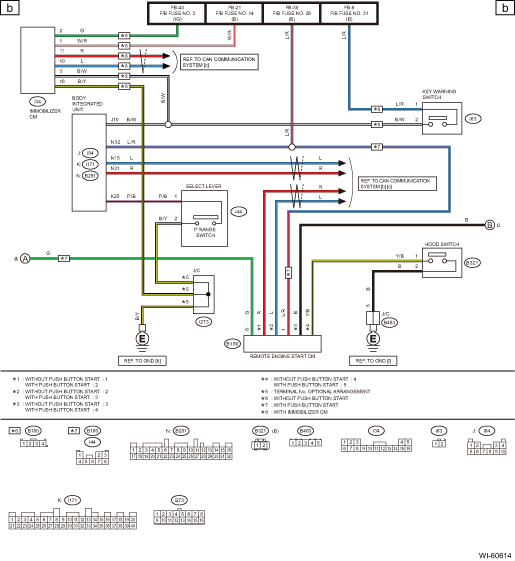

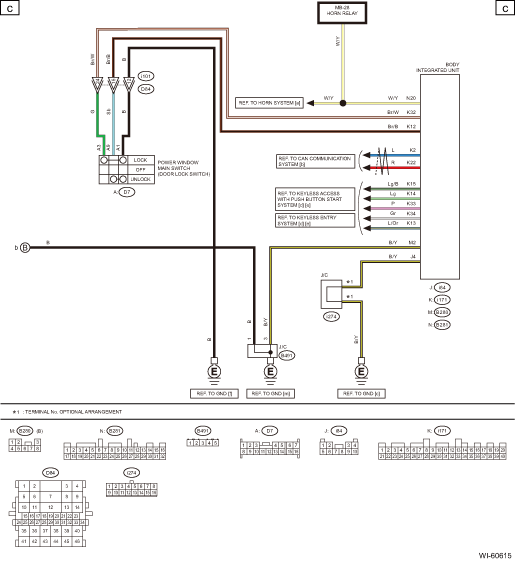

Subaru Legacy BN/BS (2015-2019) Service Manual: Remote engine start system wiring diagram

Remote control mirror system wiring diagram

...

Roof cord location

ConnectorConnecting toNo.PoleColorAreaNo.DescriptionR5018C-1i57Instrument panel wiring harnessR512BB-2 Vanity mirror light RHR523B-4 Room lightR542BC-4 Vanity mirror light LHR9614GrC-1i19Instrument pa ...

Other materials:

Dtc b14a4 refrigerant pressure sensor circuit short-circuit
DTC DETECTING CONDITION:Refrigerant pressure sensor circuit is shorted.TROUBLE SYMPTOM:Compressor does not operate. (Variable compressor)WIRING DIAGRAM:NOTE:For the coupling connector, refer to “WIRING SYSTEM”.Air conditioning system Air Conditioning System > WIRING DIAGRAMSTEPCHECKYESN ...
