Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Rear suspension / Rear trailing link / Assembly

1. BUSHING A - TRAILING LINK

1. Before assembly, inspect the following items and replace any faulty part with a new one.

• Perform visual check for damage or bend on the trailing link.

• Visually check the bushing for abnormal cracks, fatigue or damage.

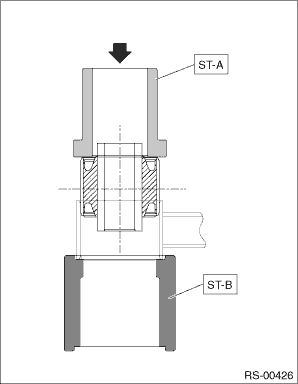

2. Using the ST-A and ST-B, press-fit the bushing.

CAUTION:

Make sure to press the bushing straight in.

Preparation tool:

ST-A: INSTALLER (899874100)

ST-B: PRESS (499755602)

2. BUSHING - TRAILING LINK

For the installation procedure of bushing - trailing link, refer to “Rear Axle” in the “DRIVE SHAFT SYSTEM” section. Rear Axle > ASSEMBLY

Removal

1. Lift up the vehicle, and then remove the rear wheels.2. Remove the trailing link.(1) Remove the bolts, and remove the bracket - parking brake cable (a) from the trailing link.(2) Remove the bolts a ...

Installation

CAUTION:• For parts which are not reusable, always use new parts.• Always tighten the bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the g ...
