Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Rear suspension / Rear trailing link / Removal

1. Lift up the vehicle, and then remove the rear wheels.

2. Remove the trailing link.

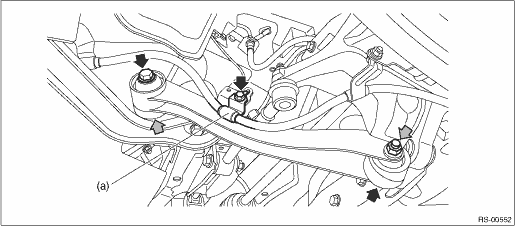

(1) Remove the bolts, and remove the bracket - parking brake cable (a) from the trailing link.

(2) Remove the bolts and nuts, and then remove the trailing link.
