1. FRONT BRAKE HOSE

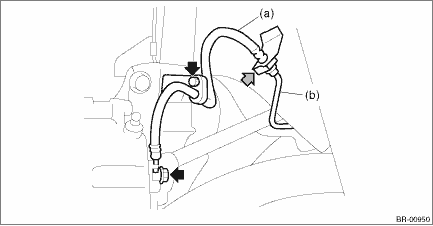

1. Disconnect the brake hose (a) and the brake pipe (b).

Tools used:

Flare nut wrench

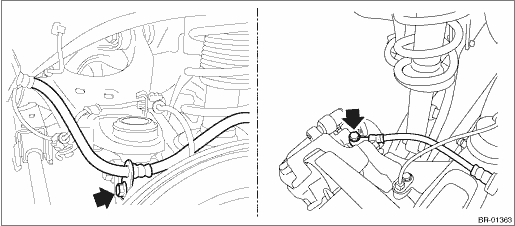

2. Remove the clamp, strut mounting bolt and union bolt, and remove the front brake hose.

2. REAR BRAKE HOSE

1. Remove the brake hose bracket bolt and union bolt.

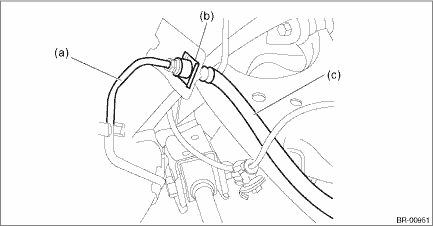

2. Disconnect the brake pipe (a).

Tools used:

Flare nut wrench

3. Remove the brake hose clamp (b), and remove the rear brake hose (c).

Inspection

Check the hose for crack, interference with other parts, damage, and fluid leakage on connecting sections. If any faulty is found, repair or replace the relevant part. ...
